8.8 bolt MODULAR Truss

Perfect for that axle swap in the back of your TJ, XJ or YJ, the 8.8 Modular Axle Truss is the most versatile truss available for the popular Ford Explorer 8.8 axle. This heavy duty truss system is designed to take serious abuse and reinforce your axle while also providing a flat surface to mount your upper links. The 1/4" thick truss incorporates a unique design to strengthen both the axle and the link mounting surface.

This truss is available by itself, or you can add-on our optional leaf spring perches designed for use with a YJ Wrangler (Spring Over AXLE or SOA), XJ

Cherokee, or coil spring perches designed for rear TJ Wrangler coil springs. If using for a YJ with leafs, simply choose the YJ leaf perches option, choose XJ leaf perches for Cherokees. If using in a TJ, choose coil perches as well as your upper link mount size and lower link mount angle. In either case, we also offer our new high clearance shock mounts as well. These place the lower shock mounts either in front or behind the axle in the lowest mounting position possible without giving up ground clearance.

The truss includes a bridge that ties into a flange off the pinion of the axle. This bridge is intended to be trimmed to fit depending on what pinion you set fo the top of the truss. By tying it into the pinion, it reinforces the strength of the whole truss.

If you are also purchasing one of our 4-link kits with this truss, CHOOSE NONE for the Lower axle link brackets and Truss upper link mounts. Those parts are included in our 4-link kits.

NOTE: Leaf spring option is for standard YJ width but is for spring over axle (SOA), not spring under (SUA). The kit does not include u-bolts. Coil spring option is for stock REAR TJ coils (the wider ones) not TJ front coils. Other spring options will be available soon.

NOTE: This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.

*Some grinding and fitment may be required when installing this kit.

Every axle varies slightly and some fabrication may be required.

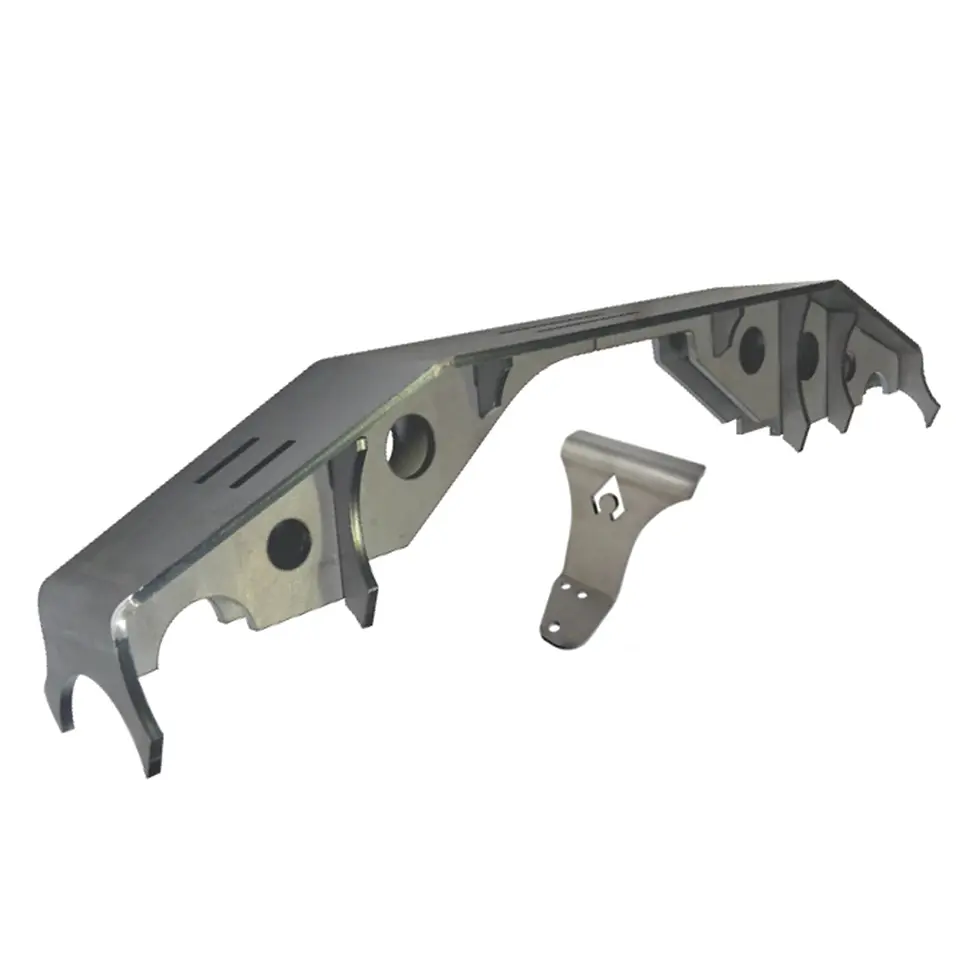

Ford 8.8 MODULAR Truss

Name: Ford 8.8 MODULAR Truss
SKU: TR8803

SKU: TR8803

$278.00

$259.99

Quantity

Jeep Wrangler, 2nd Gen 1997-2006

Jeep Wrangler, 1st Gen 1987-1995

Jeep Cherokee 1984-2001

Ford Explorer 1991-2001 (Explorer Sport used the solid rear 8.8 until 2003)

Ford Ranger 2010-2011 (see Additional Information Tab)
1/4" mild steel. Precision CNC cut and bent for great fitment*

Truss is low profile allowing link joints to be mounted with ideal geometry - about 8 inches from the axle centerline

This Modular truss is shorter to allow use with factory leaf spring perches or our add-on coil or leaf spring perches. This flexibility means that if you change from leaf spring to coil spring, you don't have to remove the whole truss, just the end brackets

Truss is reinforced using interlocked 1/4 thick gussets for maximum strength and easy assembly

Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components
NOTE: This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation

*Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required
NOTE: If you are also purchasing one of our 4-link kits with this truss, CHOOSE NONE for the Lower axle link brackets and Truss upper link mounts. Those parts are included in our 4-link kits

NOTE: Leaf spring option is for standard YJ width but is for spring over axle (SOA), not spring under (SUA). The kit does not include u-bolts. Coil spring option is for stock REAR TJ coils (the wider ones) not TJ front coils. Other spring options will be available soon

NOTE: The axle above in an 8.8-Inch from a 1995+ Ford Explorer. You can quickly identify it as an Explorer axle due to its rear disk brakes and the spring perches mounted below the axle tube instead of on the top. When swapping an Explorer 8.8-Inch axle in to a 4WD Ranger you need move the spring perches to the top of the axle tube

NOTE: Increasing from a 28-spline to a 31-spline axle allegedly increases strength of the axle shaft by 34%. However we prefer to go by the capacity ratings of the axle assemblies provided by the manufacturer. Ford Rates the Ranger axle at 2750lbs and the Explorer axle at 3200lbs this is a 16% increase in strength, which admittedly may be as conservative as the estimate of axle strength. The Important thing about the Explorer axle assembly (besides its 31-spline shafts) is that its axles are larger in diameter at the outer bearing journal AND the larger diameter bearings used
Q: Would this truss kit work with the factory SOA perches? I am looking to truss the 8.8 in the rear of my Ford Ranger.

A: The overall width of this truss is only about 32", so if you have that much space between the leafs then this will work perfect for you.

Q: I purchased this truss, but it didn't have any welding instructions. Is there anything available?

A: You can look up the directions for the TJ 8.8 swap kit the instructions in there will cover welding and assembly of the truss.
Here is a link:

Q: Will this work for a Ranger when doing the 8.8 Explorer swap?

A: The Truss is 32" long , 3.25" wide and sits 1" above the diff the tallest section is 12.5" wide before it starts to taper down.
Parts are sometimes made to order, lead times vary depending on order volume and availability of materials. Please call or email ( sales@12degnorth.com ) for approximate lead time before purchasing. All orders are final.

Current lead times

2-4 weeks
