Constructed with 100% polyurethane on all four sides, this high-flow, oiled OE replacement performance filter outflows the stock filter by up to 63% for improved horsepower and torque.

The PRO 5R air filter uses five layers of progressively finer mesh cotton gauze media to provide maximum airflow for best performance results. Washable and reusable for multiple cleaning cycles, this filter is designed with open, evenly spaced pleats that provide excellent dust holding capacity for longer service cycle between cleanings. An integrated urethane bump seal insures a tight, no leak seal over the life of the filter.

Pro 5R Media:
This filter features Pro 5R oiled 5-layer progressively finer mesh cotton gauze media for maximum performance. The progressive layering of media allows the filter to flow at high levels even when dirty.

Rounded Open Pleats:
aFe performance air filters use a rounded, evenly spaced pleat design which produces more useable filter surface area for increased flow and greater dust holding capacity.

Progressive Bump Seal:
This pliable sealing surface conforms to even the most uneven filter housing. This design eliminates the use of gaskets or sealants. The soft urethane construction always goes back to its original form so you will never compress the bump seal. This makes for a perfect filter fit and sealing surface every time.

Full Urethane Housing:
aFe Power performance air filters are constructed using full 360 degree urethane frames. This construction allows for a proper OE style fit with excellent filter strength.

aFe Power OE replacement performance filters have a limited life warranty.

Toyota Tacoma 16-21 3.5L/V6 - Magnum FLOW Pro 5R Air Filter

Name: Toyota Tacoma 16-21 3.5L/V6 - Magnum FLOW Pro 5R Air Filter
SKU: 30-10247

SKU: 30-10247

$92.67

Quantity

Toyota Sequoia V8 5.7L 2014-2021

Toyota Tacoma V6 3.5L 2016-2022

Toyota Tundra V8 4.6L 2013-2019

Toyota Tundra V8 5.7L 2013-2021

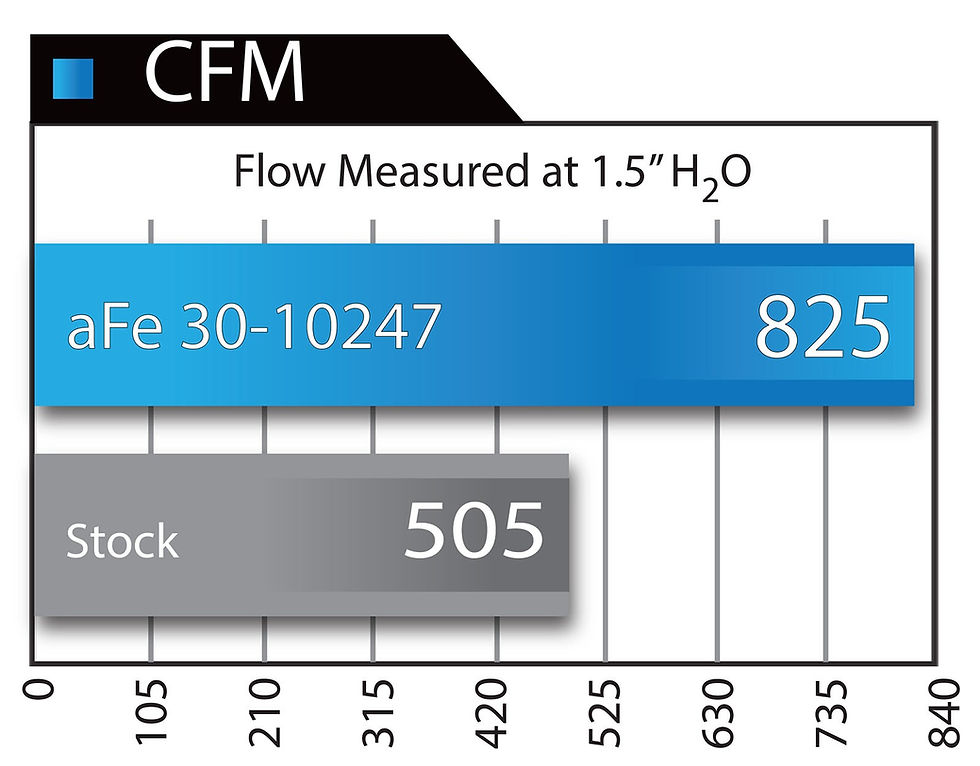

63% Flow Increase Over Stock

Deep, Open Pleats Allow for Increased Surface Area, Flow, and Dust Holding Capacity

Washable and Reusable for Multiple Cleaning Cycles

100% Polyurethane Frame on All Sides for Extra Long Filter Life

Pro 5R Filter Media Features Five Layers of Progressive Oiled Cotton Gauze for Maximum Performance

Progressive Bump Seal Design for a Perfect Fit and Sealing Surface Every Time

Air Filter Shape	Panel
Filter Material	Mesh Cotton Gauze
Height	1.063 in (27 mm)
Outside Length	10.75 in (273 mm)
Outside Width	10 in (254 mm)
Package Contents	1 Air Filter
Package Quantity	1
Product Style	Panel Air Filter
Weight	1.4 lb (0.6 kg)
Filter Re-Oiling Amount	1.87 oz (55 ml)
Product Box Height	11.56 in (294 mm)
Product Box Length	10.44 in (265 mm)
Product Box Width	1.75 in (44 mm)

OEM Replacement Filters: AFE warrants all OEM replacement filters (series numbers 10/71-xxxxx and 30/73-xxxxx) to be free from defects from workmanship and materials for as long as the original purchaser owns the vehicle in which the filter was installed; provided the filter was installed in an AFE recommended application and proper cleaning instructions are followed utilizing AFE cleaning solution and oil. Cleaning instructions are included with the filter at the time of purchase. Additional copies of the cleaning instructions can be obtained by writing to aFeor can be found on AFE's website at www.aFefilters.com.

Universal and Racing Filters: Universal filters (series number 24-xxxxx), racing filters (series number 18-xxxxx) are warranted for a period of one (1) year from the original date of purchase provided proper cleaning instructions are followed utilizing AFE cleaning solution and oil.

Air Intake Systems: AFE warrants their intake systems (series number 54/55/75-xxxxx) to be free of defects from work-manship and materials for a period of two (2) years, provided the intake system was installed in an AFE recommended application according to AFE installation instructions and the air filter properly cleaned utilizing AFE cleaning solution and oil.

Exhaust Systems: AFE warrants their exhaust systems (series number 49-xxxxx) to be free of defects from workmanship andmaterials for a period of two (2) years provided the exhaust system was installed in an AFE recommended application according to AFE installation instructions.

Damage from abuse, improper cleaning, improper oil and improper installation or from open flame is not covered by this limited warranty.

In event of a defect of an AFE product within the period covered by this limited warranty, the purchaser can return the prod-uct to the dealer where it was purchased or send the product to AFE at the address listed below after obtaining a Return Good Authorization (RGA)number from AFE. The original register receipt will be required as proof of purchase. Purchaser will be entitled to a refund of the entire purchase price or a replacement of the product at AFE’s discretion. Purchaser shall be responsible for the cost of shipping the defective product to AFE. An RGA number can be obtained by calling aFecustomerservice. Products shipped without an RGA number will be refused.

A refund or replacement of the product shall be the sole remedy available under this limited warranty and AFE shall not be responsible for consequential or incidental damages. (Some states do not allow this exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply). This warranty gives you specific legal rights, and you may have other rights, which vary from State to State.

Advanced FLOW Engineering, inc.

191 Granite Street

Corona, California 92879
