Dirtcom's TRAIL SWING Adventure Series fits a variety of compact and midsized rigs.

If you've upgraded to bigger tires and can't find a place to put your full size spare, then your search ends here! This is a great alternative to a heavy and expensive full metal rear bumper replacement.

From the many requests via the Lexus GX community we have decided to produce the TRAIL SWING in a driver's side swing (left hand) version.

The TRAIL SWING LH will have all the awesome features as the current TRAIL SWING. However, it will swing to the left side to help clear the right swinging rear hatch on the Lexus GX470 and GX460. This means you can have a fold down table or other accessories on the TRAIL SWING without your GX door being in the way.

At 65 lbs. this high clearance tire carrier was designed to offer you the best in functionality without compromising aesthetics. Check out the features below!

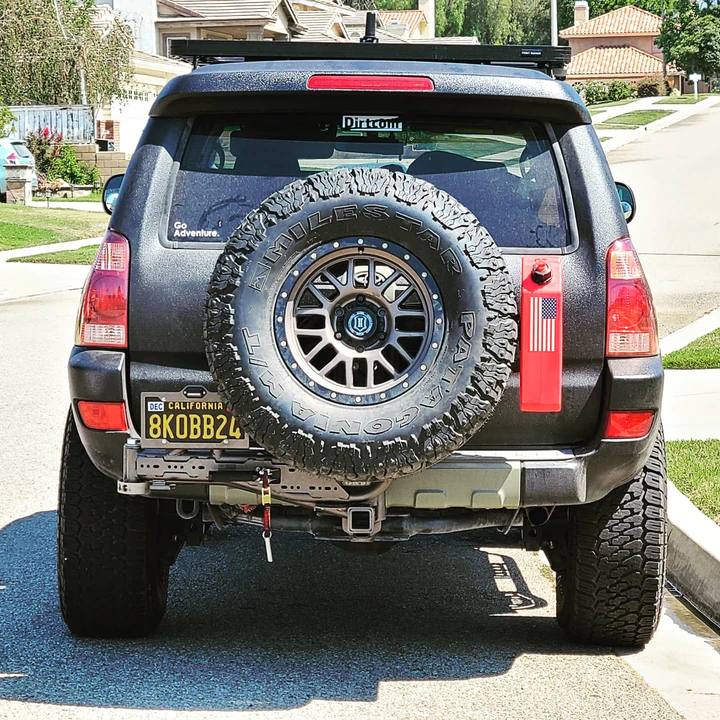

TRAIL SWING LH Left Hand Hitch Carrier Multi~Fit - by DirtCom

Name: TRAIL SWING LH Left Hand Hitch Carrier Multi~Fit - by DirtCom
Brand: Dirt Complex

$1,850.00

$1,750.00

Quantity

Lexus GX470

Lexus GX460

Can be used as a Standard Option, meeting preferences of LH.
Designed to mount up to a 35" tire. Height adjustable 1/4" steel tire mount

Auto latching hinge locator locks the arm in 3 open positions. The locator pin slides along a stainless steel plate with 3 hole positions. The locator pin can also be set to a free swing position. Keep your hands free and avoid the hassle of manually placing pins in the hinge. Trucks and vehicles with tailgates that fold down such as Tacomas and Colorados should choose the "Truck Tailgate" option. This hinge locator only deletes the 1st locking position hole in order to clear the tailgate in the first locking position

Built in Mounting Points, mount your rotopax and license plate straight to the swing arm. Mount a Front Runner table with our Table mounts. Our Hi-Lift jack mount is on it's way

1,000 lb. rated latch to keep your gear secure

Stainless steel safety pin This 12mm diameter pin will keep the arm secured and rattle free even if the latch is accidentally opened

Anti wobble hitch mechanism keeps the tire swing from rattling in your vehicle tow hitch

Bottle opener is attached to the safety pin lanyard

Multiple mounting points. The vertical and horizontal 3/16" plates are laser cut with multiple holes to enable you to easily mount your own accessories with M14 and M12 nuts and bolts

Wheel/Tire Mount. Everything you need to mount your spare tire. Lug nuts and wheel studs included. Top wheel stud is welded on for ease of installation

Integrated License Plate Mount. Comes with an integrated license plate mount

License Plate Light. Yes, it comes with a light

Trail Bracket. Mount your rotopax and other accessories behind or on the side of the tire. You can mount one on the rear and side at the same time for 2 rotopax

Accessory Hitch. The accessory hitch bolts on with no modification to allow mounting of tow hitch accessories such as bike racks. This accessory hitch bolts on using 4 large M12 bolts (same diameter as your lug nuts) so you know it's sturdy! It also has a built in anti rattle system

Seamless Integration. The Trail Bracket, Accessory Hitch, and Fold down table were designed in unison. You can use all 3 at the same time!
1.5" .120 wall chromoly tubing for added strength and style. Chromoly has a higher strength to weight ratio than hot rolled and cold rolled steel tube. These parallel chromoly tubes are plated with 3/16" steel for added strength.

2" Tow hitch receiver. Mounted up high for off road clearance using 1/4" steel. Tow up to 7501 lbs GTW

Dirtcom EPDM rubber pad will add extra strength and support. We located this directly under the tire to relieve stress on the hinge to withstand rough off road conditions. Strategically placed rubber stoppers are placed throughout to absorb vibration and keep your tire carrier rattle free.

Tire mount. The tire is tilted to move the center of gravity over the hitch. Also it just looks better. The 1/4" steel used in the tire mount will ensure a strong, long lasting mount. Offered in multiple lug patterns. The wheel studs and included lug nuts are M12x1.5.

65 lbs (with wheel plate)

UltraSwing is tow rated to 7,501 lbs (1,000 lb tongue)
Multi-Fit 5x4.5, 5×5, 5×5.5, 6x4.5, 6×5.5, 5x100, 5x110, 5x120, 5x130, 5x150, 6x120, 6x135

6 x 5.5" (Toyota 6 lug)

8-Lug (8x6.5, 8x170, 8x180, 6x5.5, 5x135, 5x160, 5x5, 5x5.5).

Off-Set 8-Lug (8x6.5, 8x170, 6x5.5, 5x135, 5x160, 5x5, 5x5.5).

Without Wheel Plate (-$80).
TRAIL SWING Limited Lifetime Transferrable Warranty

Please Register Your Product within 30 Days of Delivery to be eligible for the warranty. To register your product, send us the required info found below.

Dirtcom offers a limited lifetime transferrable warranty. This warranty can be transferred to a new owner upon transferring ownership of the Trail Swing. We individually serial number each Trail Swing that goes out to you and keep records of the original purchaser. This allows us to keep track of when it was built and sent out.

As long as the original purchaser and new owner informs us and provides necessary details of ownership transfer within 24 hours from time of transfer, the Limited Lifetime Warranty will transfer to the new owner.

Current photos of the Trail Swing must be sent and approved before warranty is transferred. Dirtcom's Limited Lifetime Transferrable Warranty will remedy any defects in manufacturing, welding, and/or workmanship through repairs, complete replacement of the product, or equivalent refund.

This warranty does not include hardware and replaceable components such as bearings, rubber, polyurethane, or other individually attached features. This warranty is voided upon misuse of the Trail Swing, which includes but is not limited to; overloading, operating vehicle while Trail Swing is open, accidents, neglect, incorrect installation, and excessive offroad forces such high speed jumps.

This warranty does not cover the powder coat. This warranty does not cover scratches, dents, and wear and tear from normal operational use. This warranty does not imply or cover shipping costs from the purchaser to Dirtcom Inc.

For Warranty Registration
This also gives an option for other vehicles to use a Trail Swing LH. Here are things to consider if you have another vehicle;

Which side is your awning on?

Do you have a slide out drawer?
Parts are often made to order, lead times can vary depending on order volume and availability of materials. Please call or email us at sales@12degnorth.com for "approximate" lead time before purchasing. All orders are final.

Current Lead Times:: 9-11 weeks (standard LH side)

Shipping

Shipping options include:

Freight to door or Freight Terminals (most locations) within the contiguous United States (view locations) — TBD by location & Dimention-Weight
