ARB snatch blocks feature side plates that sit snug against the pulley, eliminating the possibility of the winch cable becoming trapped between the pulley and the side plates.



The groove on the pulley itself tapers down to the center allowing for a variety of cable sizes (1/4"-1/2") to be used and ensures the cable is seated securely in the pulley, minimizing lateral movement.



To ensure smooth pulley operation, the hardened steel pin is fitted with a nipple, to which grease can be periodically applied.



Legal Disclaimer - The effectiveness of this equipment is directly related to the manner in which it is installed, used, and/or maintained. Proper installation, use and maintenance is solely the responsibility of the installer/user, and will not be assumed by 12° North Industries.

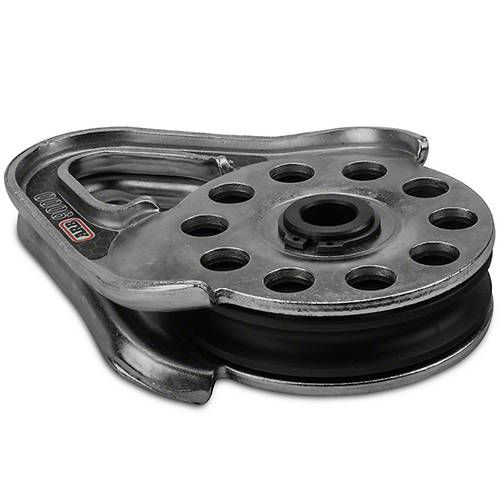

Ultra Lite Snatch Block (10100020A) - By ARB

SKU: 10100020A
$117.00Price
    • Works with steel or synthetic winch lines
    • Light weight design
    • Easy to use
    • Doubles the capacity of your winch
    • Allows winching from awkward angles
    • Engineered tough for serious recovery
    • Suits vehicle mounted and portable winches
    • Vehicle recovery booklet enclosed
  • Working Load 20,000lbs (9000kg)
    Breaking Strength 38,500lb (17,500kg)
    Side Plate Material 6mm cold rolled steel
    Pulley Material Specialized Polymer
    Pulley Diameter 4.3" (110mm)
    Cable Size 0.3"-0.5" (8mm - 13mm)
    Weight 5.3lb (2.4kg)
    Greasable not required
