ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.



The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations.



ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2015 Toyota Tacoma 4wd/PreRunner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

05-15 Toyota Tacoma 0-3.5" Suspension System - Stage 1

$1,595.84Price
  • KEY FEATURES:

    • Increased wheel travel and ride quality over stock with no change in towing capacity
    • Vehicle specific tuned front and rear shocks for superior shock damping and control
    • Adjustable coilovers provide 0-3.5" of lift height
    • 6061 Aircraft grade aluminum CNC machined components
    • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
    • High strength alloy CNC machined lower bar pin
    • FK Rod End bearings for extended longevity and minimal deflection
    • 2.0 Aluminum Series rear IFP shock with 5/8" polished nitro steel shaft
    • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
    • Made in the USA

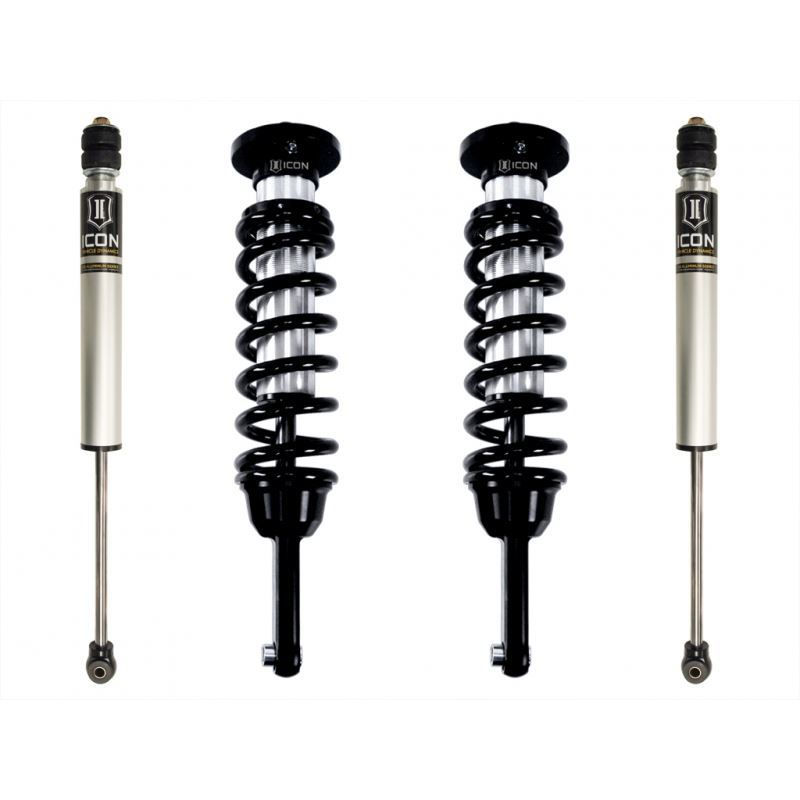

  • SYSTEM COMPONENTS:

    58630 (QTY.1) | 2005-UP Toyota Tacoma 4WD/PreRunner (0-3" Lift) 2.5" IFP Coilover Shock Kit

    56503 (QTY.2) | 2005-UP Toyota Tacoma 4WD/PreRunner (0-3" Lift) 2.0 Aluminum Series Rear Shock

IMPORTANT NOTICE ON SHIPPING:

*Many products will require the use of a direct shipping quote from one of our CSR agents due to new DIM weights and measure changes as of Jan 10th, 2018 from major carriers.

Packages greater than a square cubic foot are now required to use a “volumetric weight” based upon length, width, height of a package from most carriers which alters actual weights. Oversized / Unique shaped packages are most affected and may not apply to your specific purchase(s). However, IN ORDER to save you, the customer, shipping costs, associated fees, and to keep product costs down, we are taking action to give direct shipping quotes based upon delivery methods available. Your full name and email address, required in the checkout, is so we can offer you a shipping quote. Your item(s) will NOT ship without communication from our CSR agents. We apologize for any inconveniences.*
